WPEQ-405AX

品牌: Spark LAN

型号: WPEQ-405AX

产品优势: 工业级WIFI6模块 支持2.4G/5G PCIE接口 QCN9074

公司: 上海勤诺智能通讯科技有限公司

地址: 上海市奉贤区金海公路6055号11幢5层

产品介绍
 产品概述

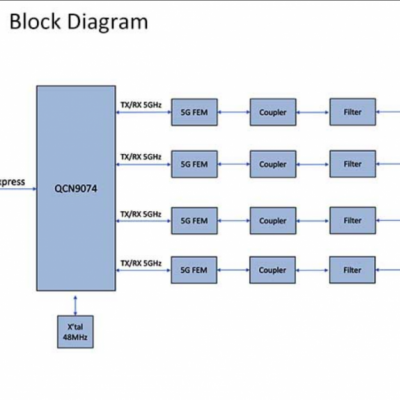

The first WiFi-6 (802.11ax) Qualcomm based AP solution on module formfactor from SparkLAN. WPEQ-405AX, is based on QCN9074 chipset solution. This is a true enterprise based wireless module that powers 4T4R (4×4) MU-MIMO, in 5Ghz Single band mode, hitting a theoretical speed of up to 4.8Gbps with 160MHz support.

Unlike typical Qualcomm reference design around QCN9074 (PN02.1), WPEQ-405AX shrink the traditional 50mmx50mm M.2 E-Key design to a more popular Mini PCIe Full size formfactor of just 50mm x 30mm, run at 3.3V voltage. Provides a greater versatility to use on more common seen design.

WPEQ-405AX performs both AP and STA functionality with 4 spatial streams, although recommended more for hardware AP applications as it supports 4096-QAM, OFDMA technology, makes it perfect for heavy lifting applications such as Enterprise grade AP, UTM, public & transportation Hotspot, and other industrial capable Access Points.

Suitable Application

 Applications include Multimedia Router and AP solution., etc.

Specification

STANDARD
WI-FI IEEE 802.11ax/ac/a/n
Chipset Qualcomm Atheros QCN9074
Host Interface WLAN : PCIe
RADIO
Antenna 4 x IPEX MHF1 connectors
Operating Frequency 802.11ax/ac/a/n ISM Band
5.150GHz~5.850GHz

*Subject to local regulations

MODULATIONS
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11a OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
802.11ax OFDMA (BPSK, QPSK, DBPSK, DQPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM)

POWER & SENSITIVITY
WiFi Power – TX (± 2dBm) Sensitivity – RX
11a @ 54Mbps 17dBm ≤ -76dBm
11n HT20 @ MCS 7 17dBm ≤ -70dBm
11n HT40 @ MCS 7 17dBm ≤ -68dBm
11ac VHT80 @ MCS 9 16dBm ≤ -62dBm
11ac VHT160 @ MCS 9 16dBm ≤ -60dBm
11ax HE20 @ MCS 11 15dBm ≤ -64dBm
11ax HE40 @ MCS 11 15dBm ≤ -62dBm
11ax HE80 @ MCS 11 15dBm ≤ -57dBm
11ax HE160 @ MCS 11 15dBm ≤ -55dBm
POWER CONSUMPTION
Continue TX 1954 mA
Continue RX 819 mA
ENVIRONMENTAL
Operating Voltage DC 3.3V
Temperature Range -20~ 70°C (Operating) -20 ~ 90°C (Storing)
Humidity(Non-Condensing) 5 ~ 90% (Operating) 5 ~ 90% (Storing)
SIZE

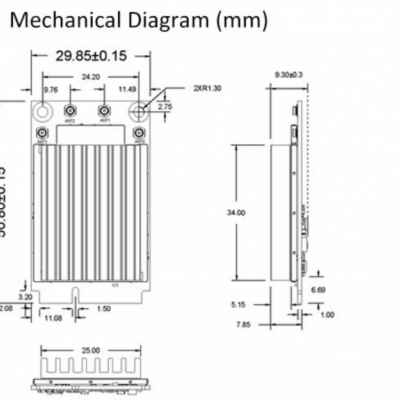

Dimension (MM) 50.80mm (±0.15mm) x 29.85mm (±0.15mm) x 9.3mm (±0.3mm)
Weight 14.6 g
SOFTWARE
Driver Linux (Open Source)
Security 64/128-bits WEP, WPA, WPA3,  802.1x
Miscellaneous
Warranty Period 12 Month
HS Code 8517620050

Certifications

FCC Certification Logo CE Certification Logo IC Certification Logo
USA EU Region Canada

Environmental Compliance


ROHS Reach
